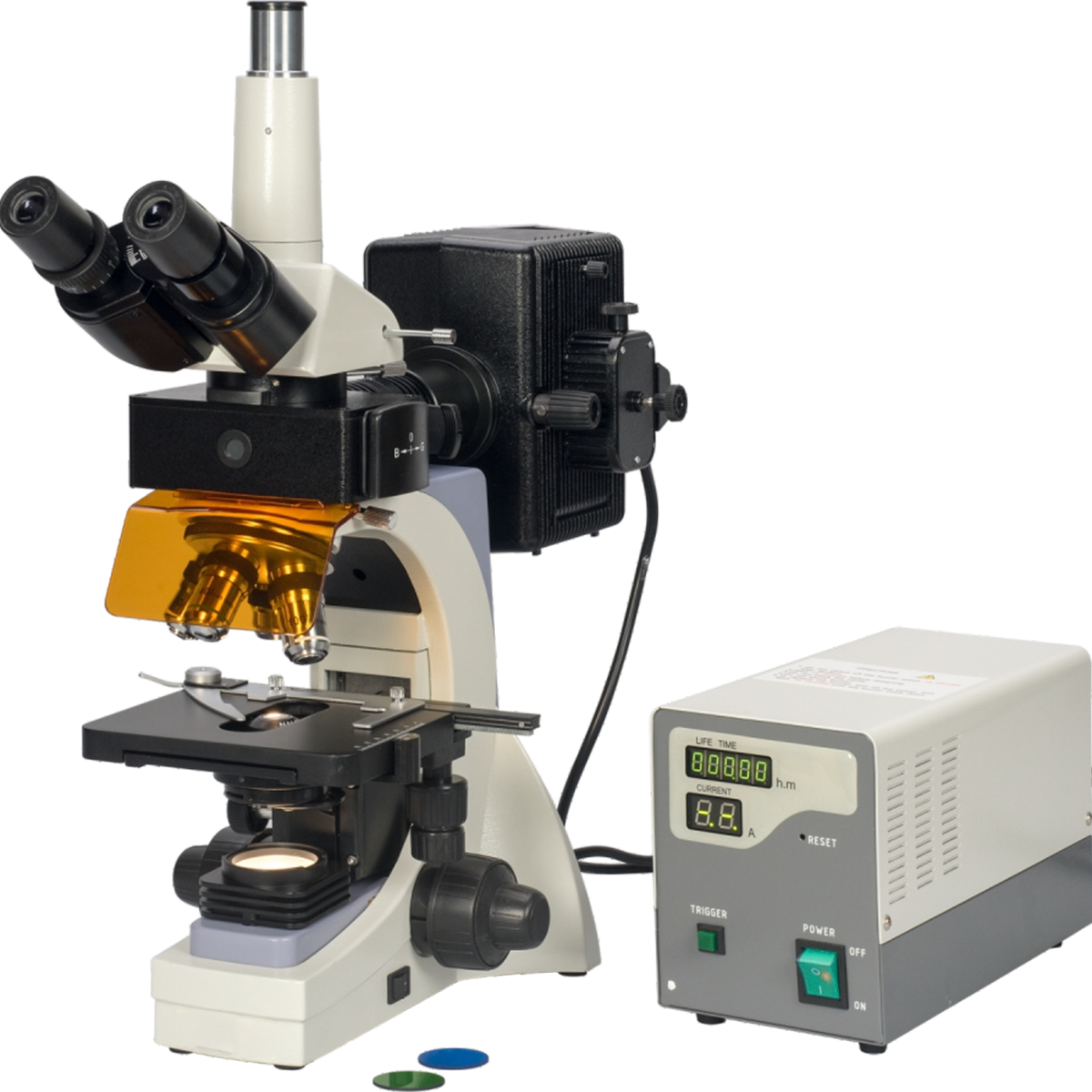

FLUORESCENT MICROSCOPE

• Excellent fluorescent image with high resolution fluorescent objectives
• Protect the light leak with advanced lamp housing
• Excellent Optical Function with Infinitive Optical System
• Innovative Stand structure, Sharp Image Display,
• Convenient and Special for Viewing Incubating Cell Tissue
• Widely used in venereal disease examination and immuneless diagnosis

VIEWING HEAD Compensation free Trinocular Head inclined at 30° lnterpupillary Distance ꞉ 48‑75 mm

EYEPIECE (OCULAR) High point , Extra wide field eyepiece EW10X/20mm

NOSEPIECE ꞉ Inverse Quadruple Nosepiece

OBJECTIVES Long working distance Infinite Plan Achromatic objective 4x/0.1, 10x/0.25, 20x/0.65, 40X/1.25

CONDENSOR꞉ N.A. l .25 rack and Pinion Adjustable
CENTERING TELESCOPE꞉ Centering telescope 30MM
STAGE ꞉ Double layer mechanical (Size꞉21 0mmXl 40mm, Move range꞉ 75mmX50mm)

FOCUS SYSTEM Coaxial coarse & fine focusing adjustment with tensional adjustable and up stop minimum division of fine focusing꞉ 2µm.

LIGHT SOURCE FILTER꞉ Halogen bulb 6V/20W

FILTER ꞉ Blue, and frosted glass Filters

REFLECTED FLUORESCENCE SYSTEM

Mercury Lamp House 100W/DC Power Supply꞉ AV 220V

Fluorescence Filter System B exciton wavelength ꞉ 420~485nm

Fluorescence Filter System G exciton wavelength ꞉ 460~550nm

Fluorescence Filter System UV exciton wavelength ꞉ 330~400nm

FLUORESCENT ATTACHMENT SPECIFICATIONS

Reflected Light Source Blue, Green Exciting Light Filter System and Ordinary Light System

Illumination 100W HBO Ultra Hi‑voltage Spherical Mercury Lamp

Centering Telescope꞉ 30MM

Protection Barrier Power Supply Barrier to Resist the Ultraviolet Light

Fluorescent Objective 4x, 10x, 40x (S), 1 00x (S, Oil)

Immersion Oil Fluorescence Free Oil
